Products > Step-motor lasers > L2530 400mW RRRR Four-Heads pro laserdj light

Product Name:

L2530 400mW RRRR Four-Heads pro laserdj light

Product Description:

(1) Model: L2530
Description: 400mW RRRR Four Lens (4xRed 100mW 650nm)

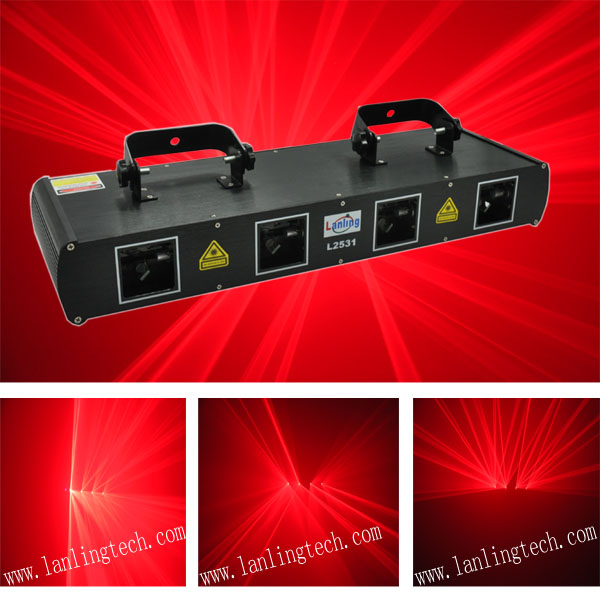

(2) Model: L2531
Description: 800mW RRRR Four Lens (4xRed 200mW 650nm)
(3) Model: L2532
Descritpion: 1200mW RRRR Four Lens (4xRed 300mW 650nm)

◆Feature: This four tunnel laser light has many pre-programmed stunning effects with over 100 laser patterns and over 300 laser effects, such as wave, tunnel, circle, dots, fan shaped, etc. Four pairs of X/Y high-speed step motors are working simultaneously to make the beams very smoothly, mellow and full, to cover the stage at 120°. Four operation modes: Sound Active, AUTO, DMX, Master/Slave. In Sound Active mode, this laser light is "Black Out" when there is no music. In DMX512 mode, you can set to different functions: 52 kinds of pattern selection, X/Y movement, scanning speed, pattern size. In Master/Slave mode, up to 32 same units can link together without control. Attractive appearance is designed to make people love this laser light.

◆Scanning: Micro-step motor scanning at big angle

◆Play Mode: Sound Active, AUTO, DMX, Master/Slave

◆DMX channel: 7 channels control with the function of BLACK OUT

◆Interface: 3 pins XLR jack for DMX or Maser-Slave linking

◆Power Supply: 110V or 220V-250V AC, 50/60HZ, 30W

◆Net Weight: 4.3Kg

◆Gross Weight: 5.1Kg (inner box), 10.9Kg (outer box)

◆Volume Weight: 7.8Kg (/5000) or 6.5Kg(/6000), each inner box

17.4Kg (/5000) or 14.5Kg(/6000), each outer box

◆Inner Box: 650*264*176(0.03m⊃3;)

◆Outer Box: 670*280*392(0.074m⊃3;), 2pcs/carton

Youku video link:
(1) http://v.youku.com/v_show/id_XMTE1MzE3NTI0.html?from=y1.7-1.2
(2) http://v.youku.com/v_show/id_XMTE1MzI2OTM2.html?from=y1.7-1.2
