Products   >  Laser lights   >  Step-motor lasers  > L2220 200mW double red stage laser light
Product Name:

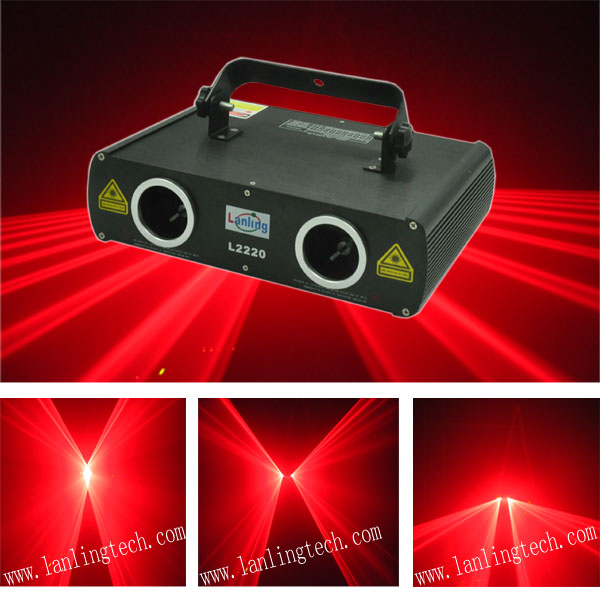

L2220 200mW double red stage laser light

Product Description:

(1) Model Number: L2220
Description: 200mW red Duo Laser Light (Red:100mW + Red: 100mW)
(2) Model Number: L2240
Description: 400mW red Duo Laser Light (Red:200mW + Red: 200mW)
(3) Model Number: L2260
Description: 600mW red Duo Laser Light (Red:300mW + Red: 300mW)
(4) Model Number: L2280
Description: 1000mW red Duo Laser Light (Red:500mW + Red: 500mW)
◆Feature This two tunnel laser light has many pre-programmed stunning effects with over 100 laser patterns and over 300 laser effects, such as wave, tunnel, circle, dots, fan shaped, etc. Two pairs of X/Y high-speed step motors are working simultaneously to make the beams very smoothly, mellow and full, to cover the stage at 120°. Four operation modes: Sound Active, AUTO, DMX, Master/Slave. In Sound Active mode, this laser light is "Black Out" when there is no music. In DMX512 mode, you can set to different functions: 52 kinds of pattern selection, X/Y movement, scanning speed, pattern size. In Master/Slave mode, up to 32 same units can link together without control. Attractive appearance is designed to make people love this laser light.
◆Scanning Micro-step motor scanning at big angle
◆Play Mode: Sound Active, AUTO, DMX, Master/Slave
◆DMX channel: 7 channels control with the function of BLACK OUT
◆Interface: 3 pins XLR jack for DMX or Maser-Slave linking
◆Power Supply: Bi-Voltage 110V to 220V-250V, 50/60HZ, 30W
◆Net Weight:  2.3Kg
◆Gross Weight:  2.5Kg (inner box), 13.7Kg (outer box)
◆Volume Weight: 4.7Kg (/5000) or 3.9Kg(/6000), each inner box
                               20.8Kg (/5000) or 17.4Kg(/6000), each outer box
◆Inner Box: 400*270*170(0.018cbm)
◆Outer Box: 565*420*380(0.09cbm), 4pcs/carton
