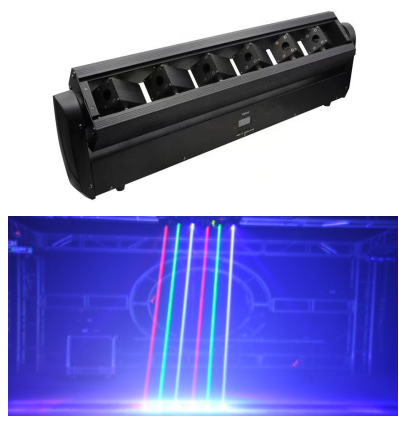

LN6-3WRGB Indoor 3W RGB 6 heads Fat-beam movinghead laser bar
Product Description:
*Model number: LN6-3WRGB
*Description: Indoor 3W RGB 6 heads Fat-beam movinghead laser bar
*Laser power: 500mW RGB*6
*Laser beam: fat-beam diameter about 1-2cm from the output
*Feature: Stunning laser beam effects to make a “WOW” stage effect. Under DMX512 working mode, it can create color change, speed, dimmer, position, group effects settings.
Swing angle: 180 degrees on the X axis and 60 degrees on the Y axis can be controlled separately.
*Display: digital display operation:
DMX Address A001---A512 Address Code
Channel Mode 11CH, 26CH, 38CH channel selection
Show Mode SOUND AUTO, effect selection
Slave Mode MASTER, SLAVE, main and auxiliary machine selection
Black Out YES, NO Standby mode
Sound State ON, OFF voice switch
Sound Sense sound sensitivity (0 off, 100 most sensitive)
Pan Inverse YES, NO level reverse
Tilt1 Inverse YES, NO vertical reverse
Tilt2 Inverse YES, NO vertical reverse
Tilt3 Inverse YES, NO vertical reverse
Tilt4 Inverse YES, NO vertical reverse
Tilt5 Inverse YES, NO vertical reverse
Tilt6 Inverse YES, NO vertical reverse
Back Light ON, OFF backlight switch
Auto Test Auto Test
Firmware Version V104 software version number
Defaults YES, NO Restore factory settings
System Reset YES, NO Machine reset
*Play mode: AUTO, Sound-activated, Master/Slave, DMX512.
*DMX channel : 11/26/38CH
*Interface: DMX IN/OUT XRL interface for DMX512.
*Power supply: AC100V-250V 50/60Hz
*Power corn IN/OUT for main power source
*Fuse to avoid damage for sudden emergency
*Power switch ON/OFF
*Working temperature: normal indoor 18℃-45℃
*IP Rate: IP22
*Laser housing material: Aluminum.
*laser length: 638X520X450nm
*Net Weight : 12KGS
